PET Fiber Needle Punching Nonwoven Machine

The Staple Fiber Needle Punch Nonwoven Fabric Production Line is a comprehensive system used to create nonwoven fabrics from staple fibers through mechanical entanglement. Here’s a detailed overview of the process and components involved:

1. Fiber Opening and Blending: The production line starts with the fiber opening and blending process, where bales of staple fibers are opened and mixed to ensure a homogeneous blend. This is achieved using bale openers, fiber mixers, and blenders.
2. Carding: The blended fibers are then fed into a carding machine. The carding machine uses a series of rotating drums covered with fine wires to align the fibers and form them into a continuous web. This web is then laid onto a conveyor belt.
3. Cross-Lapper: The carded web is then processed through a cross-lapper, which layers the web back and forth to build up the desired fabric thickness and width. This step ensures even distribution and increases the fabric’s strength.
4. Needle Punching: The core process involves needle punching, where the layered web is passed through a needle loom. This loom contains barbed needles that move up and down rapidly, mechanically entangling the fibers to form a cohesive and durable fabric. Multiple needle looms may achieve the desired fabric density and strength.
5. Pre-Needling and Main Needling: Typically, the process includes pre-needling to provide initial bonding and main needling for final bonding. Pre-needling gives the web enough integrity to handle the main needling process without significant distortion.
6. Finishing: After needle punching, the fabric may undergo additional finishing processes such as thermal bonding, chemical treatments, calendaring, or surface finishing to enhance its properties, such as tensile strength, abrasion resistance, or specific aesthetic qualities.
7. Cutting and Winding: The finished nonwoven fabric is then cut to the required dimensions and wound into rolls for storage and transportation. Cutting machines ensure precision and consistency in the final product.
8. Control Systems: Advanced control systems are integrated throughout the production line to monitor and adjust parameters like fiber feed rate, needle penetration depth, and web tension. These systems ensure consistent product quality and operational efficiency.
9.  Quality Control: The production line includes quality control mechanisms to inspect and test the fabric at various stages. This ensures that the final product meets the required specifications and standards.

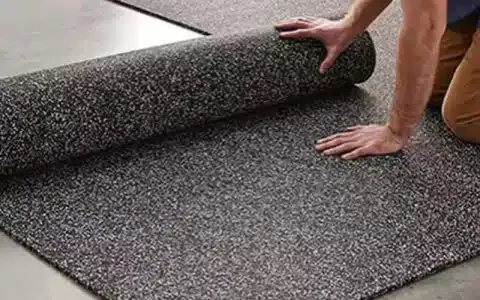

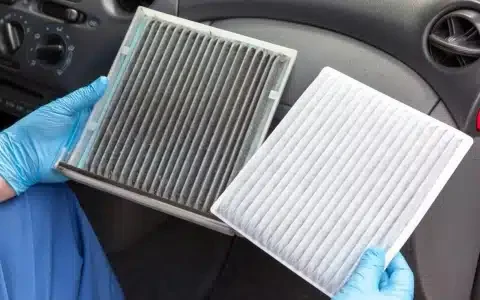

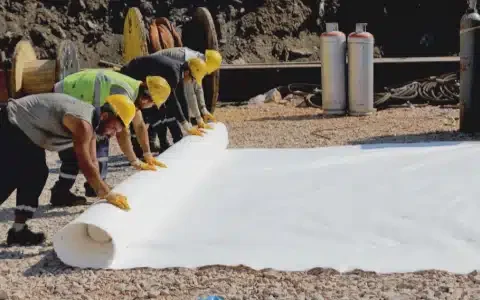

This detailed and versatile production line efficiently manufactures high-quality nonwoven fabrics suitable for a wide range of applications, including geotextiles, automotive interiors, filtration materials, and carpeting.
