Nonwoven Fabric Extrusion Laminating Machine

A Nonwoven Fabric Extrusion Laminating Machine is used to bond layers of nonwoven fabric together using an extruded layer of thermoplastic material. It enhances the properties of the nonwoven fabric by adding functionalities such as barrier protection, waterproofing, or strength reinforcement.

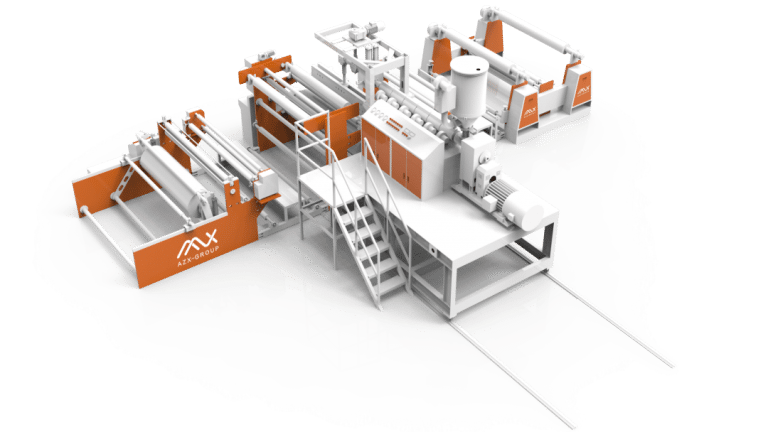

Nonwoven Fabric Extrusion Laminating Machine AZX Nonwoven Fabric Extrusion Laminating Machine

Nonwoven Fabric Extrusion Laminating Machine

Centralized control by PLC man-machine interface, integrated design of machine, electricity, and gas.

  • High-precision borderless imported original die head
  • High-speed and high-efficiency mixing device According to the needs of customers, auxiliary devices can be selected such as automatic winding and unwinding, non-stop roll changing, fast screen changing, corona machine, etc.

Machines can be customized according to customer needs.

Mechanical Specifications 900 1100 1400 1700
Maximum Effective Width 800mm 1000mm 1300mm 1600mm
Extrusion Screw Diameter Φ80mm Φ90mm Φ90mm Φ100mm
Maximum Extrusion Volume 160kg/hr 180kg/hr 220kg/hr 240kg/hr
Total Power Of Extruder 30KW 30KW 45KW 45KW
Coating Film Top Speed 150-200m/min
Applicable Coating Resin LDPE、PP、 EVA 、EAA
Applicable Substrate BOPP, BOPET, BOPA, CPP, CPE, PAPER, AL, NONWOVEN FABRIC
Coating Thickness 0.12~0.6mm
Net Film Thickness Error ≦±5%
Main Unwinding Diameter Φ800-1300mm (extra large roll diameter)
Auxiliary Unwinding Diameter Φ500mm
Rewinding Diameter Φ800-1500mm (extra large roll diameter)

IT’S GOOD TO CHOOSE US

10+ YEARS OF EXPERIENCE

AZX has more than ten years of R&D, production and sales experience.

300+ INSTALLED LINES

Over 300 AZX non woven production lines have been already installed worldwide.

10,000 ㎡ WORKSHOP

AZX has a 10,000 square meter workshop.

20+ TECHNOLOGIES

AZX controls over 20 core technologies and technical patents of non woven machines.

30+ GLOBAL MARKETS

AZX non woven machines have already been provided to over 30 countries and regions.

7x24 ONLINE SUPPORT

AZX remote assistance system can help you find and deal with problems in time.

APPLICATIONS

What would you like to produce?

If you know what you want to produce but are unsure which technology you need, we will be happy to advise you. We will guide you to the right component or line.

hygiene non woven fabric for baby

Baby Diapers

Nonwoven fabric provides a soft and breathable surface, ensuring comfort and reducing skin irritation.

nonwoven adult diaper

Adult Diapers

Non-woven fabric provides high absorbency and leak protection, ensuring user comfort and dignity.

hygiene non woven

Sanitary Napkins

Its high absorbency and softness enhance comfort and hygiene for users.

Nonwoven Fabric Disposable Face Towel

Face Towels

Its soft texture and absorbency make it ideal for gentle facial cleansing.

hygienenonwoven

Underpads

Non-woven fabric offers high absorbency and protection for bedridden patients or pets.

nonwvoen shoe covers

Shoe Covers

It provides a disposable, hygienic solution to maintain cleanliness in medical and cleanroom environments.
