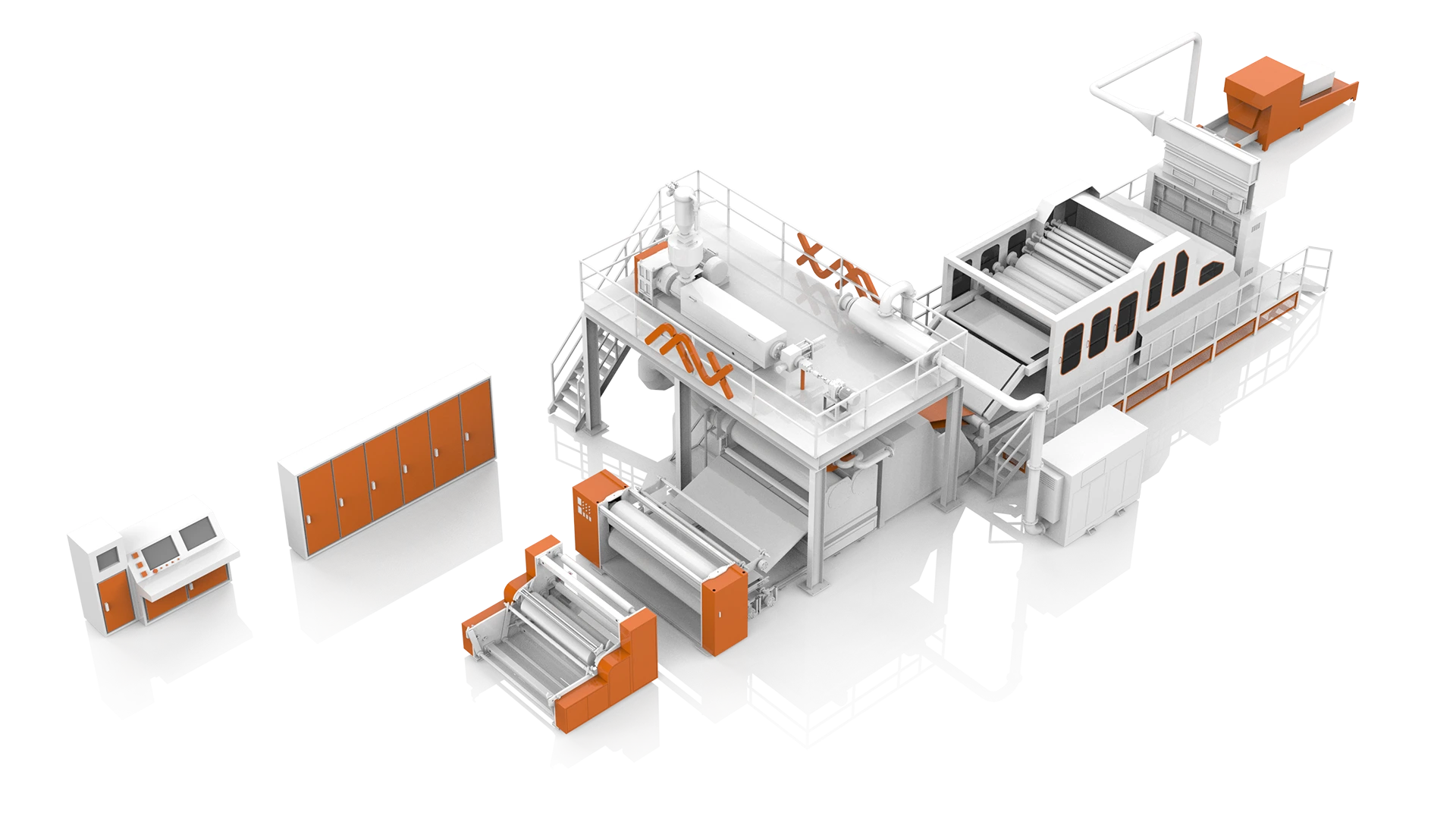

auto sound insulation material production line
AZX auto sound insulation material production line uses PP+PET bi-component sound insulation material technology, which is suitable for automobile engine cover sound insulation, door sound insulation, frame sound insulation, etc.

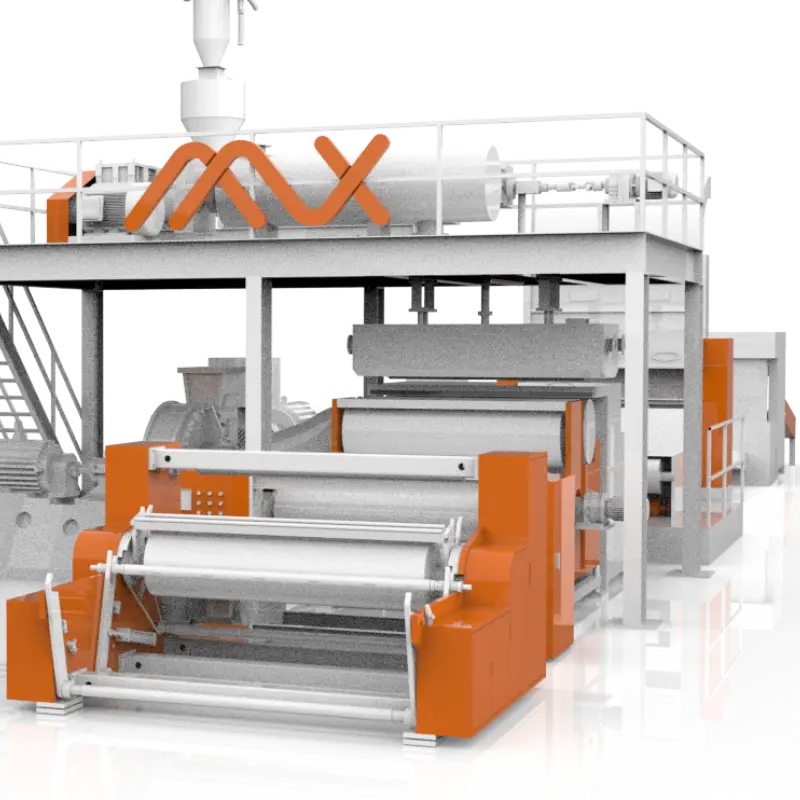

auto sound insulation material production line Details
Dosing Station
Meltblown Die
Slitter-rewinder
Electronic System

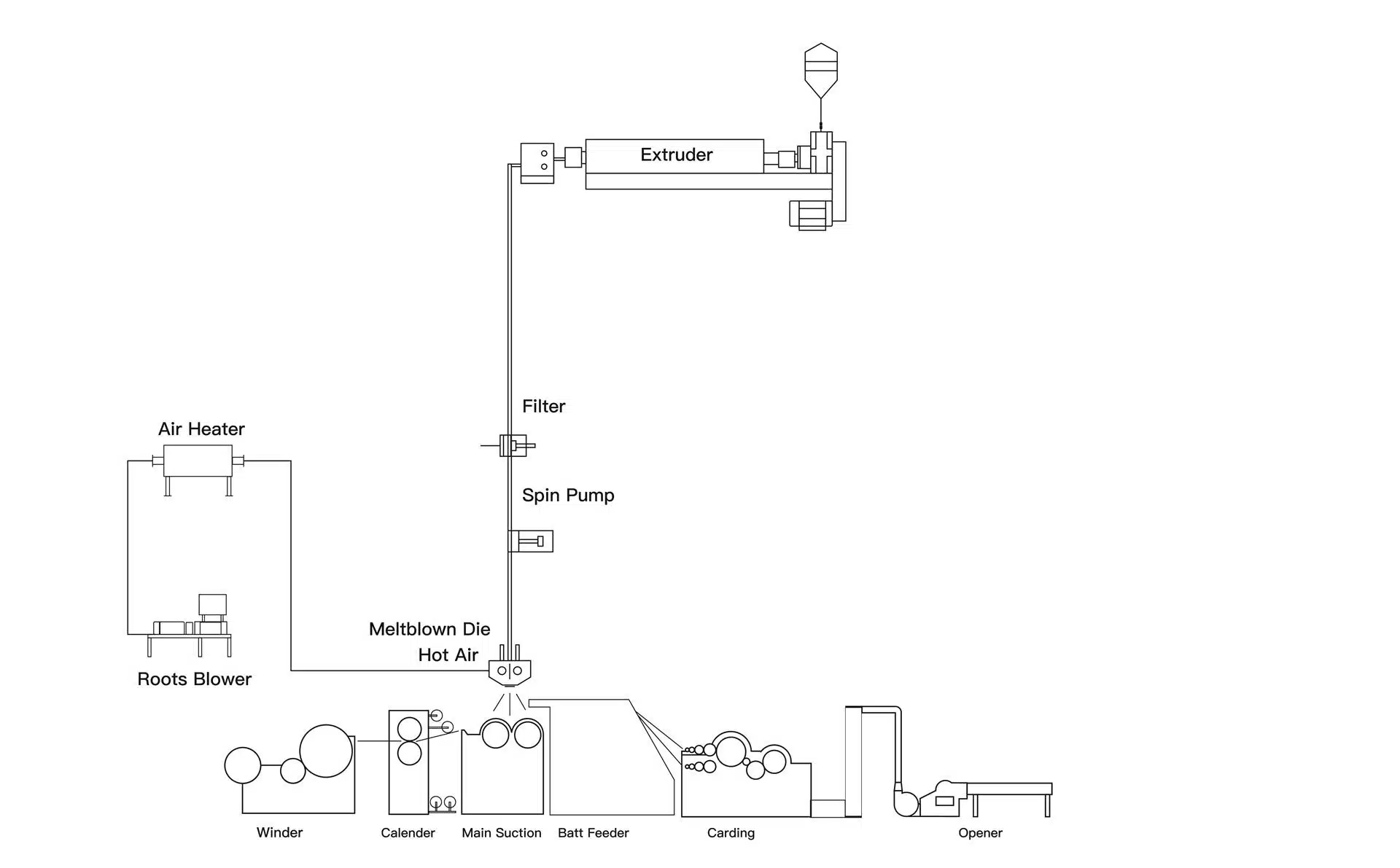

auto sound insulation material production process
auto sound insulation material production line Parameter
| Categories： | PP+PET Auto Sound Insulation Material Production Line |
| Brand： | AZX |
| Fabric Width: | 1600mm/2400mm |
| Main material: |
Polypropylene chip (PP), Polyester fiber (PET) |
| PP MFI（Melt flow index）： | 1200~1500 MFI(230℃)≥25g/10min |
| Product Gram: | 100-600g/㎡ |
| Machine Speed: | 100m/min |
| Yield: | 1000 - 1500 t/year |
Using the new PP+PET bi-component technology, the melt-blown polypropylene fiber has a diameter of 2-6 μm, combined with polyester fiber to form a three-dimensional mesh continuous porous fiber material. Compared with traditional automotive sound-absorbing materials, such as open-cell foam, felt, PET cotton and other materials, the PP+PET bi-component structure of the sound-absorbing material has excellent mid- and high-frequency sound absorption performance, light weight, low thermal conductivity, high temperature resistance, hydrophobicity, environmental protection and other properties.

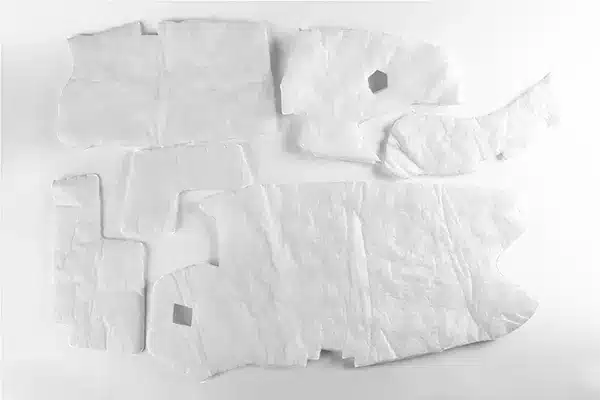

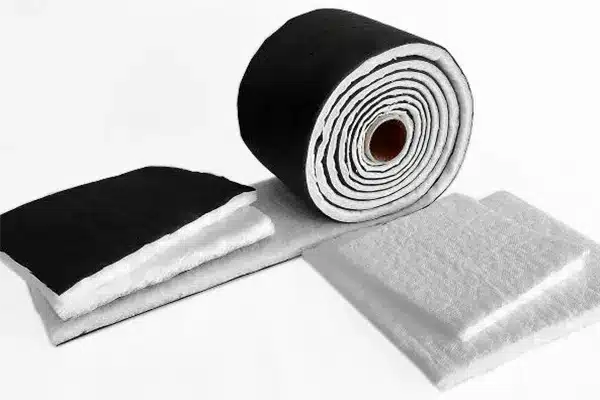

auto sound insulation material application
The PP+PET bicomponent acoustic material is primarily used in automotive NVH (Noise, Vibration, and Harshness) management. It effectively reduces in-cabin noise while being lightweight, making it ideal for supporting vehicle lightweight design.
- Engine soundproof and heat-insulation cover
- Acoustic cotton for windshield pillars (A-pillar)
- Acoustic cotton for lower front side panels (B-pillar)
- Dashboard cover acoustic cotton
- Acoustic cotton for center pillars
- Door trim panel acoustic cotton
- Rear side panel acoustic cotton (C-pillar)
- Acoustic cotton for fender liners
- Hat rack acoustic pad
- Roof liner acoustic cotton
- Dashboard acoustic cotton
- Front cowl acoustic cotton
