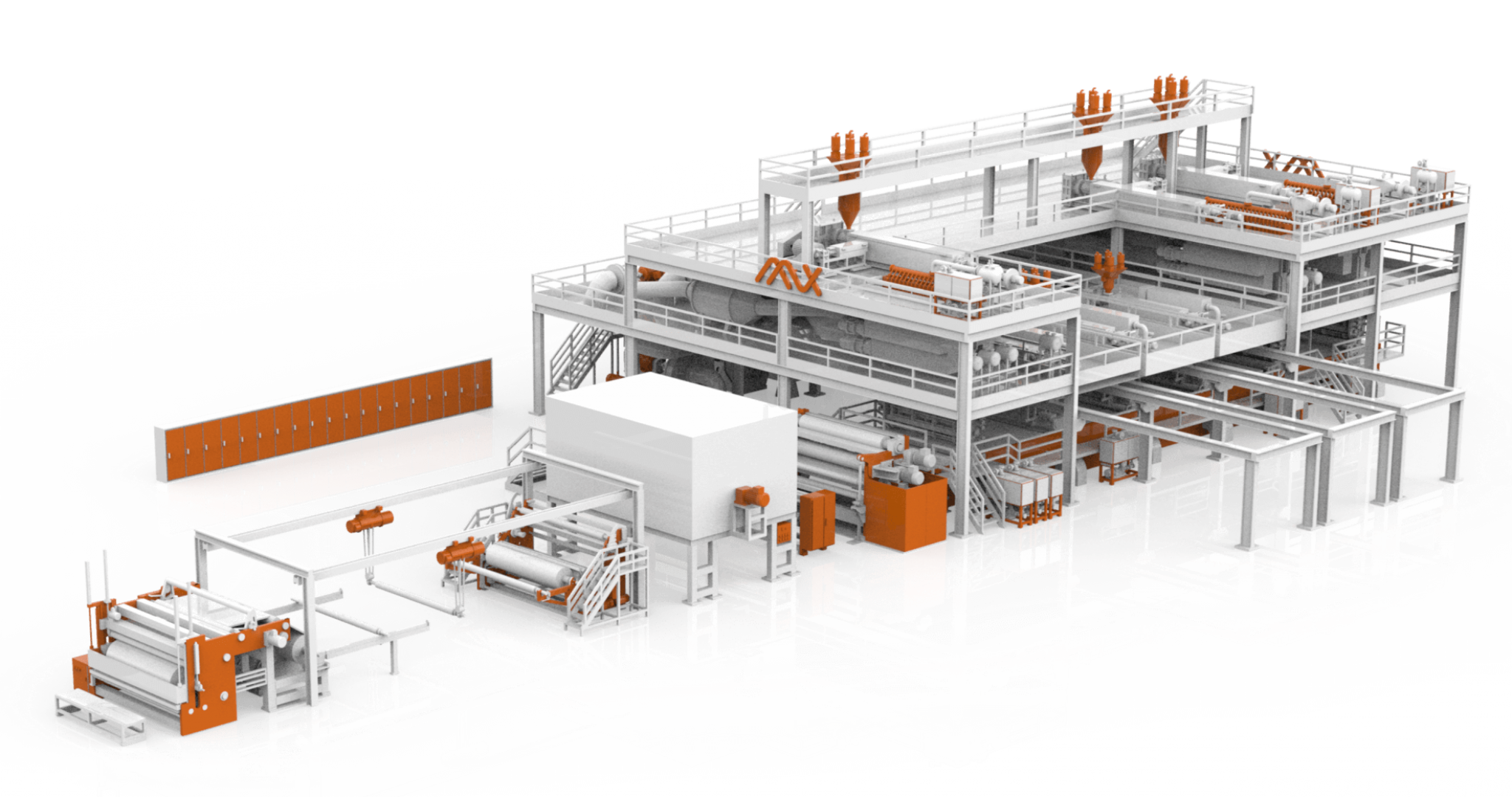

SSMMMS Nonwoven Machine

SSMMMS Nonwoven Machine can not only produce products covering spunbond fabrics, meltblown fabrics, SMS nonwoven fabrics, etc. The unique combination of multi-layer spunbond and meltblown structure, high barrier properties and breathability provide excellent materials for medical protection.

SSMMMS Nonwoven Machine Details

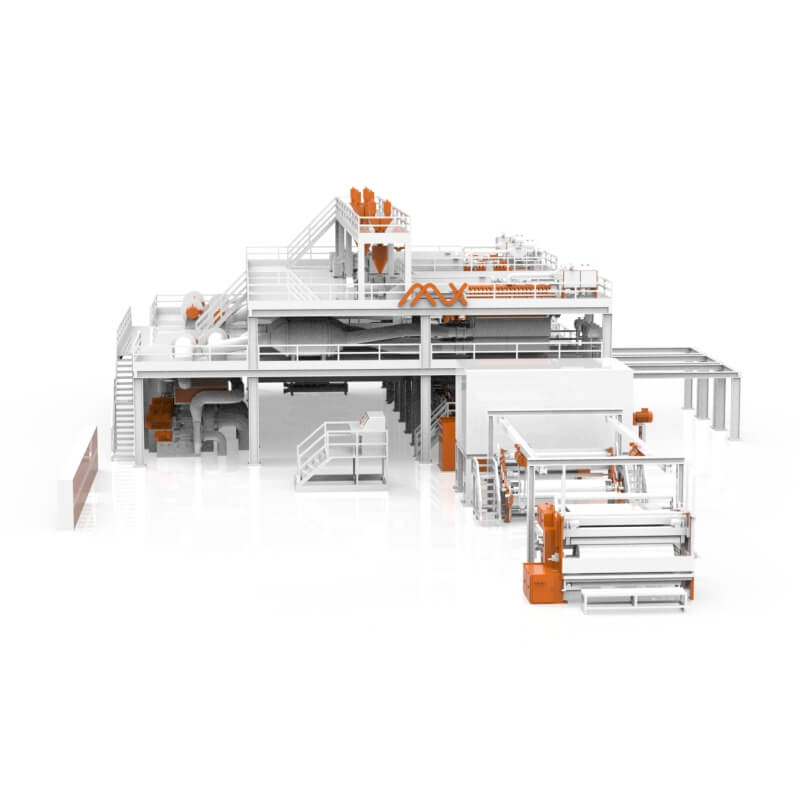

AZX SSMMMS nonwoven fabric machine

Dosing Station

SSMMMS Six Beams Spunmelt Nonwoven Machine dosing station

1 of 5

Winder

SSMMMS Six Beams Spunmelt Nonwoven Machine winder

2 of 5

Slitter-rewinder

SSMMMS Six Beams Spunmelt Nonwoven Machine azx slitter rewinder

3 of 5

Meltblown Die

SSMMMS Six Beams Spunmelt Nonwoven Machine meltblown die

4 of 5

Electronic System

SSMMMS Six Beams Spunmelt Nonwoven Machine electronic system1

5 of 5

SSMMMS Nonwoven Production Process

SSMMMS Nonwoven Machine Parameter

Categories: Six Beams (SSMMMS)
Brand: AZX
Fabric Width: 1600mm/2400mm/3200mm/4800mm
Main material: Polypropylene chip(PP)
SB MFI(Melt flow index): 25-45 MFI(230℃)≥25g/10min
MB MFI(Melt flow index): 1200 - 1500 MFI(230℃)≥25g/10min
Spunbonded Nonwoven: 1.3~1.8den
Meltblown Nonwoven: 2-5μm
Product Gram: 8-80g/㎡
Machine Speed: Up to 800m/min
Yield: 6000-12000TPA

SSMMMS Nonwoven Machine Tureview

IT’S GOOD TO CHOOSE US

10+ YEARS OF EXPERIENCE

AZX has more than ten years of R&D, production and sales experience.

300+ INSTALLED LINES

Over 300 AZX non woven production lines have been already installed worldwide.

10,000 ㎡ WORKSHOP

AZX has a 10,000 square meter workshop.

20+ TECHNOLOGIES

AZX controls over 20 core technologies and technical patents of non woven machines.

30+ GLOBAL MARKETS

AZX non woven machines have already been provided to over 30 countries and regions.

7x24 ONLINE SUPPORT

AZX remote assistance system can help you find and deal with problems in time.

APPLICATIONS

What would you like to produce?

If you know what you want to produce but are unsure which technology you need, we will be happy to advise you. We will guide you to the right component or line.
