Pilot Nonwoven Machine

Pilot Nonwoven Machine is designed to replicate the functionality of full-scale production machines but on a smaller scale, allowing researchers and manufacturers to test new materials, processes, and product designs before committing to large-scale production.

Pilot Nonwoven Machine

Two types of pilot nonwoven machine with web width of 500mm and 250mm enable prototyping of Meltblown and Spunbond. Bi-co spinning is also available.

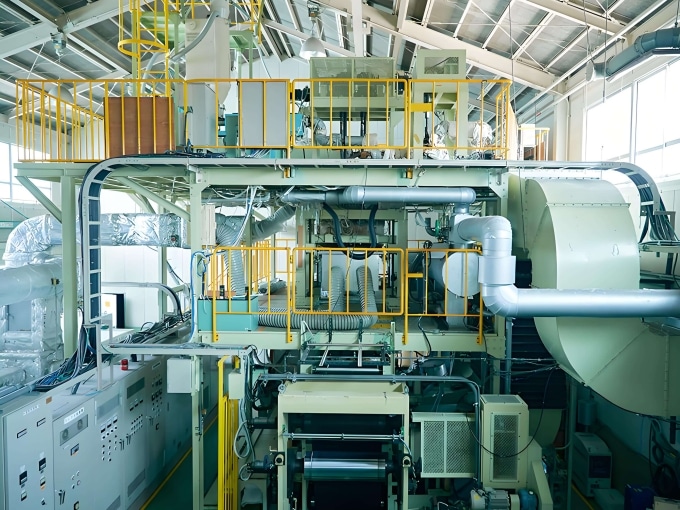

600mm Pilot Machine

Both spunbond and Meltblown are available. It has two extruders for Bi-component spinning.

Web width: 500mm
Extruder: Φ65＆Φ40
Spinning Temperature: Max.330℃
Air Temperature: Max.380℃
Line speed: Max.200m/min

600mm Pilot Machine

Both spunbond and Meltblown are available. It has two extruders for Bi-component spinning.

Web width: 500mm
Extruder: Φ65＆Φ40
Spinning Temperature: Max.330℃
Air Temperature: Max.380℃
Line speed: Max.200m/min

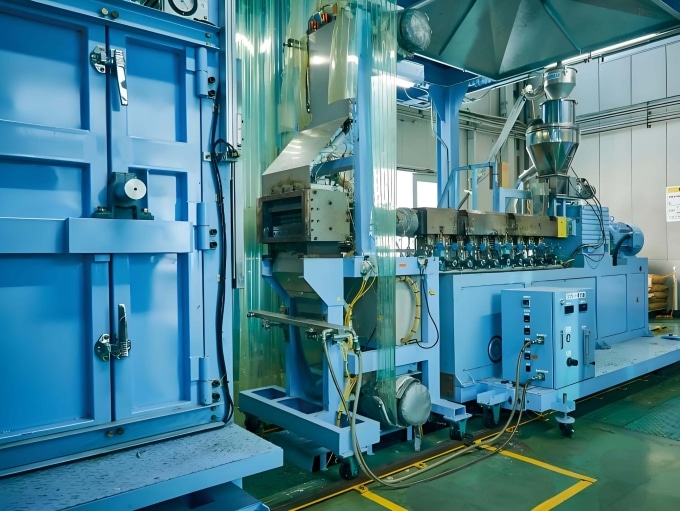

250mm Meltblown Pilot Machine (super engineering plastic is available)

Horizontal spinning. It supports high temperature polymer such as engineering plastic up to 450℃.

Web width: 200mm
Extruder: Φ35 (twin screw)
Spinning temperature: Max.450℃
Air temperature: Max.450℃
Line speed: Max.50m/min

IT’S GOOD TO CHOOSE US

10+ YEARS OF EXPERIENCE

AZX has more than ten years of R&D, production and sales experience.

300+ INSTALLED LINES

Over 300 AZX non woven production lines have been already installed worldwide.

10,000 ㎡ WORKSHOP

AZX has a 10,000 square meter workshop.

20+ TECHNOLOGIES

AZX controls over 20 core technologies and technical patents of non woven machines.

30+ GLOBAL MARKETS

AZX non woven machines have already been provided to over 30 countries and regions.

7x24 ONLINE SUPPORT

AZX remote assistance system can help you find and deal with problems in time.

APPLICATIONS

What would you like to produce?

If you know what you want to produce but are unsure which technology you need, we will be happy to advise you. We will guide you to the right component or line.
